Dikran Gilbert Ghougas Hovaghimian
Associate Professor of Ophthalmology in the Retina Department, Research Institute of Ophthalmology in Cairo, Egypt.

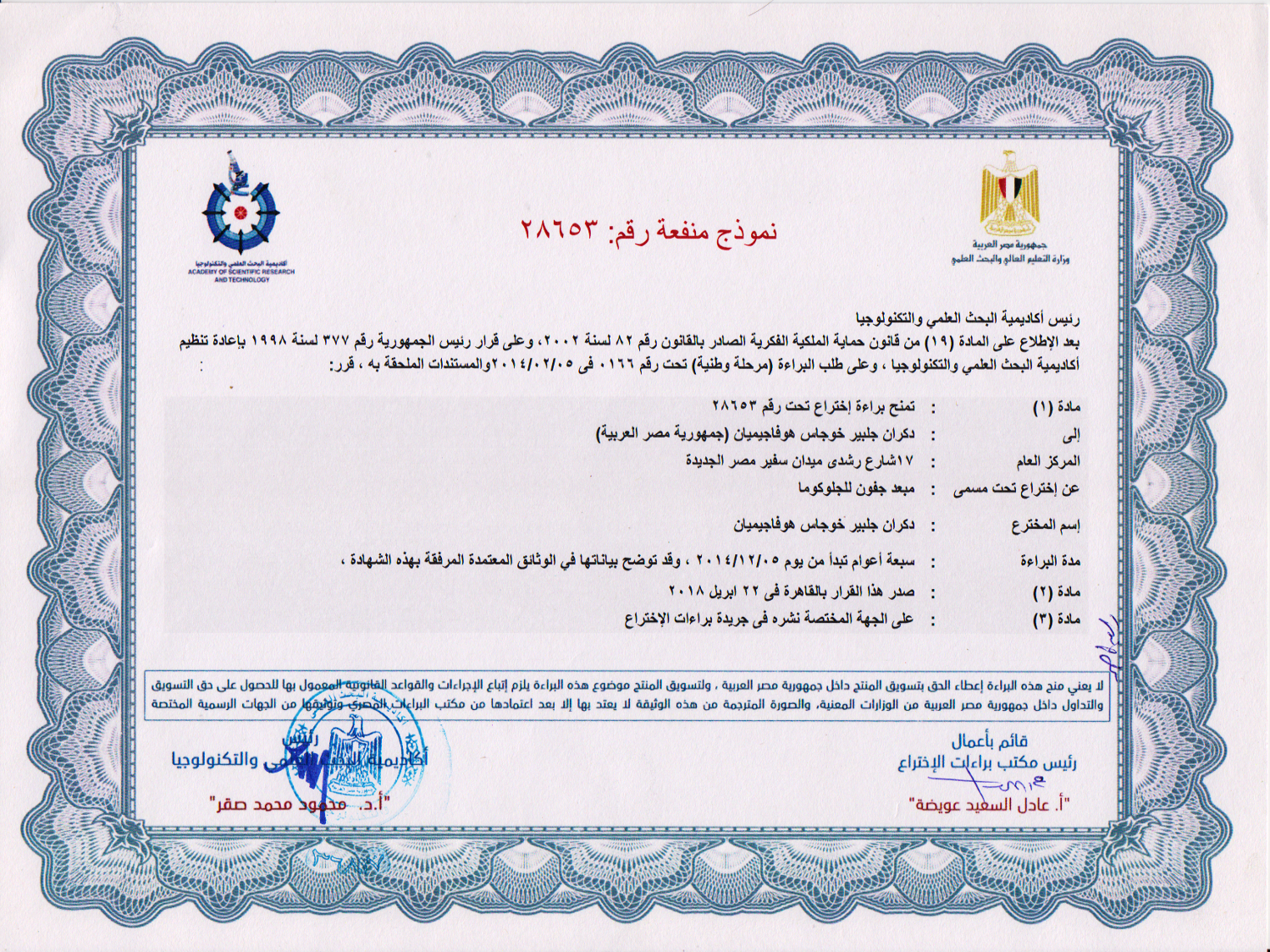

| Glaucoma (Eye Lid) Speculum | |
|---|---|
|
Application No
|
EG/P/2014/166
|
|
Title (English)
|
TITLE- GLAUCOMA (EYE LID) SPECULUM
|
|
Filling Date
|
05-02-2014
|
|
Patent Date |
18-04-2018
|
|
Patent No
|
28653 |
|
Abstract (English)
|
A new stainless steel glaucoma eye speculum possessing 2 stainless steel tubes welded on the free ends of both arms of the speculum. Separate stainless steel add on attachments of varying lengths will be inserted in the lower tubes and their lower end will be inserted in the lower conjunctival fornix to rotate the eye downwards , exposing the upper 1/2 of the eye for glaucoma surgery.
The speculum is used for both routine and glaucoma eye surgeries. Inserting the attachments in the upper tubes will rotate the eye upwards exposing the lower half of the eye for oculoplastic surgeries.
|

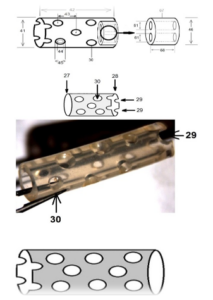

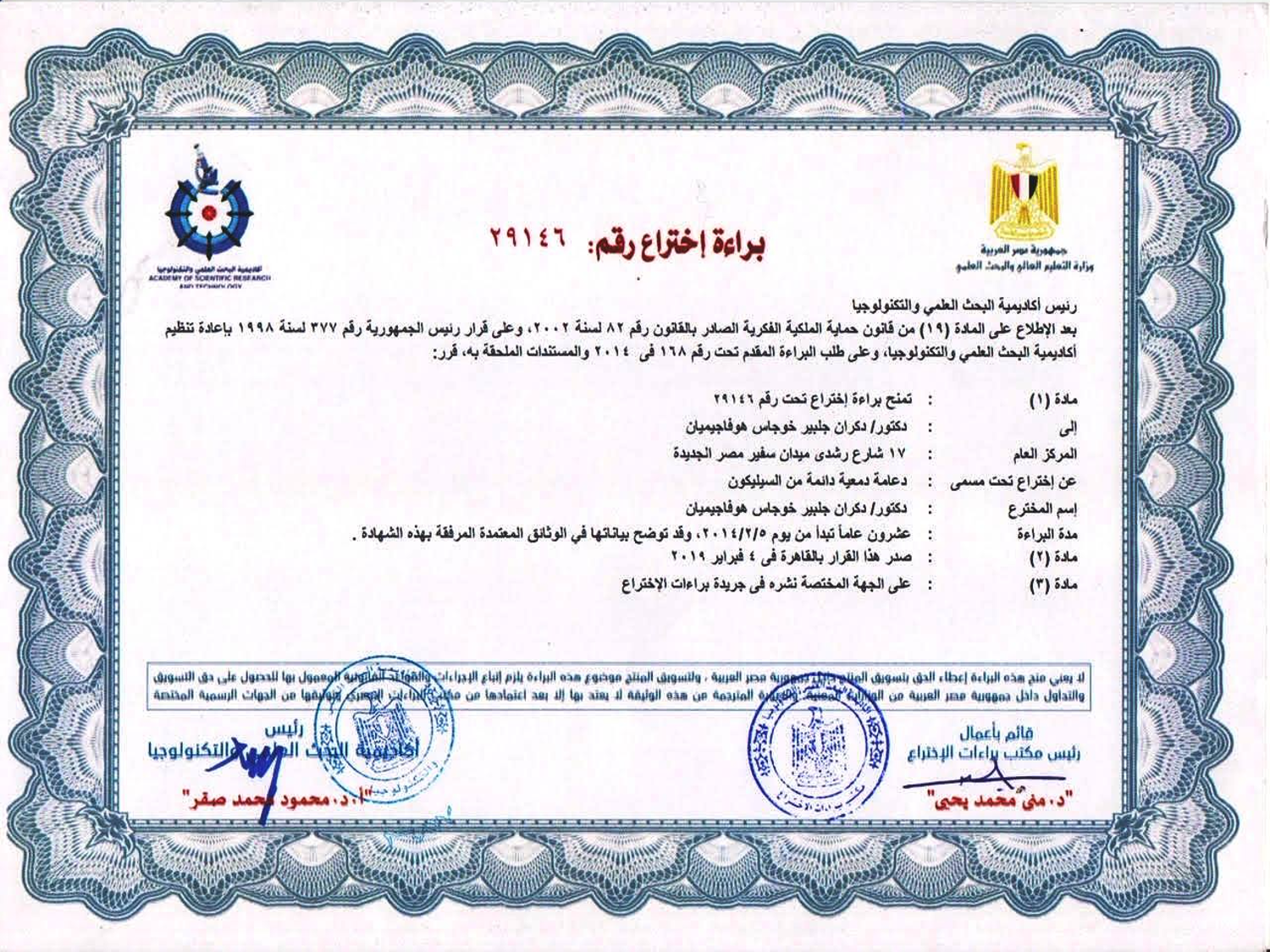

| PERMANENT SILICONE LACRIMAL STENT | |
|---|---|
|
Application No
|
EG/P/2014/168
|
|
Title (English)
|
PERMANENT SILICONE LACRIMAL STENT |
|
Filling Date
|
05-02-2014 |
|
Patent Date |
04-02-2019
|
|
Patent No
|
29146 |
|
Abstract (English)
|
The new invention presented is a Lacrimal Stent made of medical grade silicone intended for permanent implantation. It is designed for patients with nasolacrimal duct obstruction. It is around 20 mm in length and has 2 cut patent ends and will be implanted in the lacrimal fossa. One of the ends will pass through a hole in the lacrimal bone preventing the obstruction of the hole and has 4 notches to guard against blockage of the stent. The tube possesses 10 holes that will act as extra drainage channels. The stent is compressible to dislodge its content into the nasal cavity if inadvertently obstructed.
|

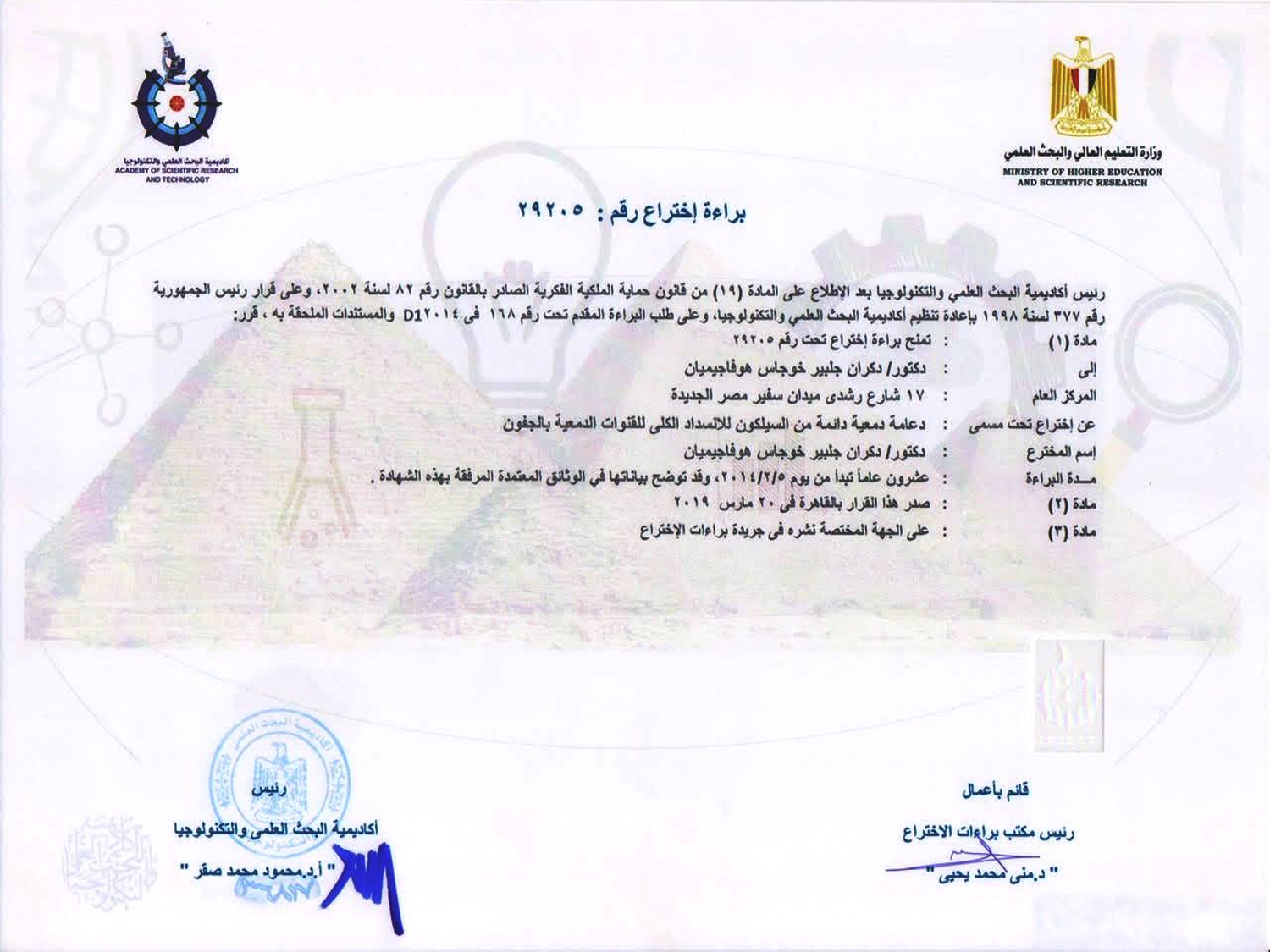

| Permanent silicone lacrimal Stent for fibrosed or absent lacrimal canaliculi | |
|---|---|
|
Application No
|
EG/1/2014/168
|
|
Title (English)
|
PERMANENT SILICONE LACRIMAL STENT FOR FIBROSED OR ABSENT LACRIMAL CANALICULI
|
|
Filling Date
|
05-02-2014
|
|
Patent Date |
20-03-2019
|
|
Patent No
|
29205 |
|
Abstract (English)
|
The Lacrimal Stent is made of medical grade silicone for permanent implantation. It is designed for fibrosed or absent lacrimal canaliculi. It is a continuous unit of 2 parts .First part, 2 tubes for implantion in the eyelids, second part, and a tube to be implanted in the lacrimal fossa with its free end passing through a hole in the lacrimal bone preventing its obstruction and has 4 notches to guard against blockage of the stent. The tube possesses 10 holes that will act as extra drainage channels if the 1st part is desired to and intentionally removed after sometimes and after assurance that the lacrimal puncti and canaliculi are formed in the eyelids and the 2nd part will act as the 1st invention presented being a permanent lacrimal stent. The stent is compressible.
|
Previous image
Next image

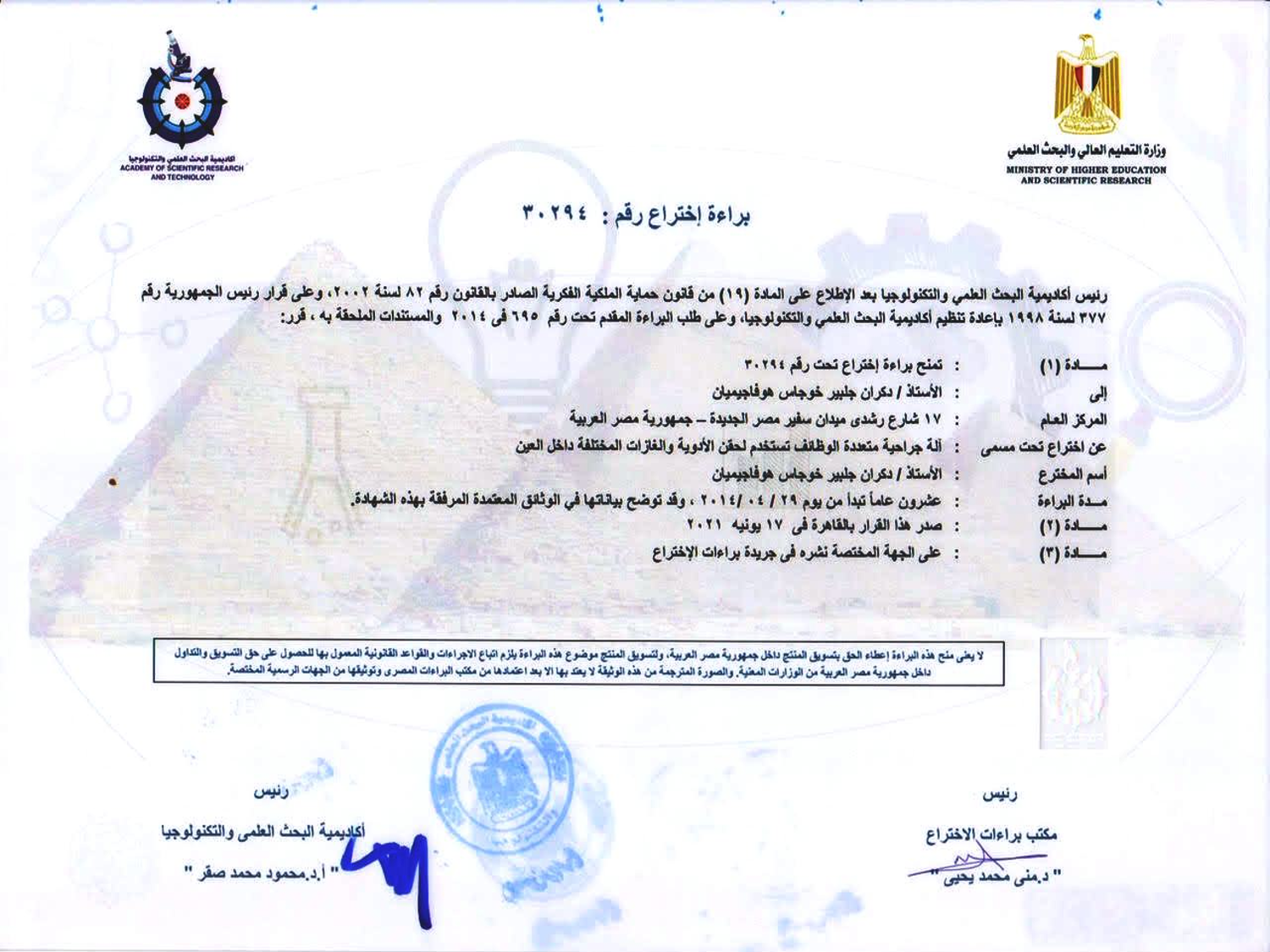

| MULTIFUNCTIONAL OPHTHALMIC SURGICAL INSTRUMENT FOR INTRAVITREAL INJECTION OF DRUGS AND GASES | |
|---|---|
|
Application No
|
EG/P/2014/695
|
|
Title (English)
|
MULTIFUNCTIONAL OPHTHALMIC SURGICAL INSTRUMENT FOR INTRAVITREAL INJECTION OF DRUGS AND GASES |
|
Filling Date
|
29-04-2014 |
|
Patent Date |
17-06-2021
|
|
Patent No
|
30294 |
|
Abstract (English)
|
A single multifunctional surgical tool to be used in everyday ophthalmic procedures used for both eyes having a disposable and reusable version, used primarily for intravitreal guided injection of drugs at a fixed angle of penetration, to inject simultaneously 2 drugs at 2 different sites and at 3.5 or 4mm from the limbus. It is also used for Eye fixation during any eye surgery, scleral fixation of Intra Ocular lens, Caliper, Ruler, protractor, and guided paracentesis. Very easy to use, safe, accurate, very rapid, atraumatic, providing hemostatic and tamponading effect.
|

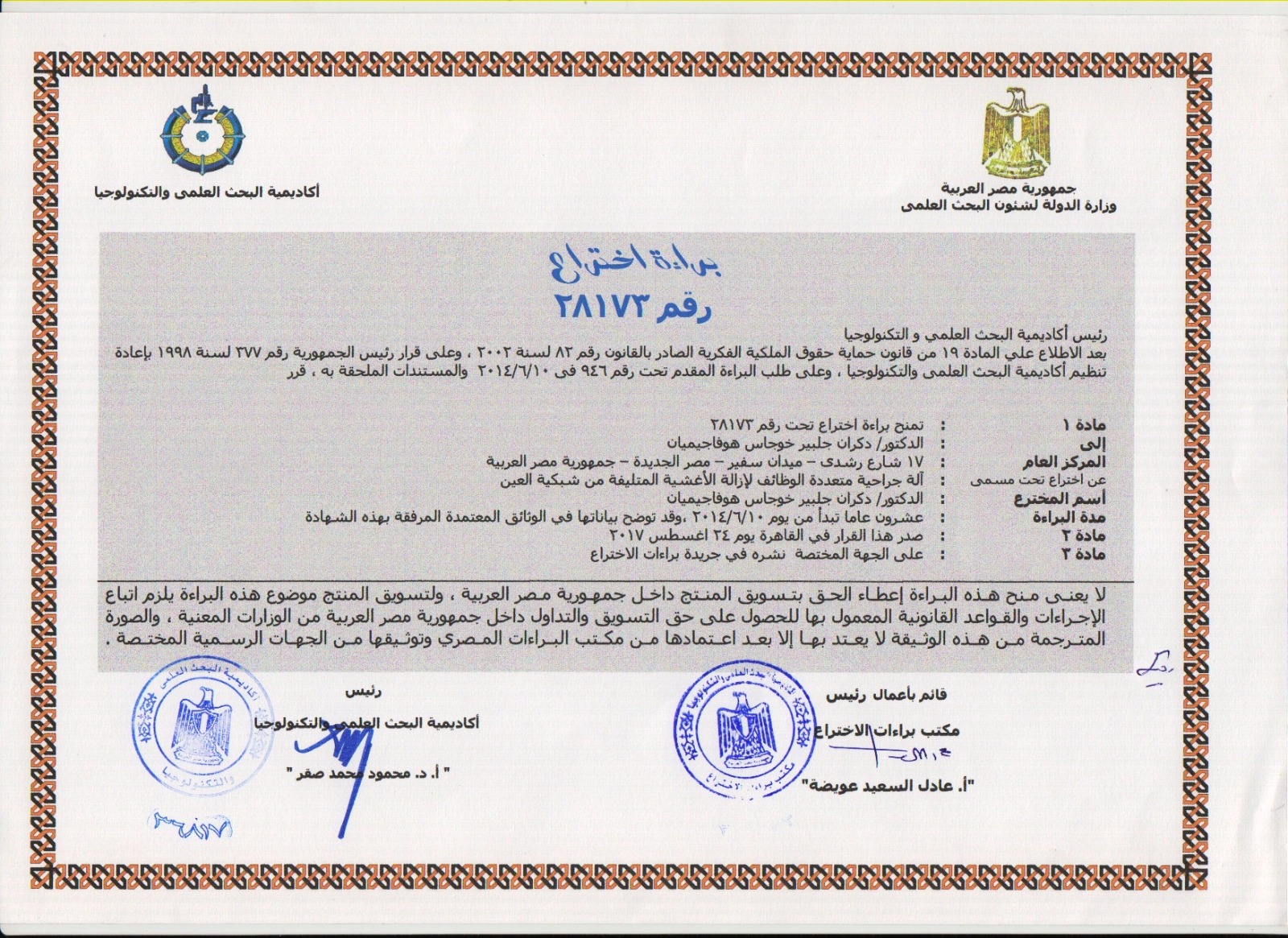

| Multifunctional retinal membrane twister and peeler | |
|---|---|
|
Application No
|
EG/P/2014/946 |
|
Title (English)
|
MULTIFUNCTIONAL RETINAL MEMBRANE TWISTER AND PEELER |
|
Filling Date
|
10-06-2014 |
|
Patent Date |
24-08-2017 |
|
Patent No
|
28173 |
|
Abstract (English)
|
A STAINLESS STEEL OR TITANIUM MULTIFUNCTIONAL EPIRETINAL AND SUBRETINAL MEMBRANE DISSECTOR THAT HAS A TWISTING ACTION TO PEEL RETINAL MEMBRANES DURING VITRECTOMY. IT CONSISTS OF A HANDLE AND A SHAFT. THE DISTAL END OF THE SHAFT IS BISECTED AND EACH PART IS CURVED AND RESHAPED INTO 2 SEPARATE MICRO SURGICAL RETINAL INSTRUMENTS, TO MANAGE THE MEMBRANES. THE 2 ENDS ARE CURVED IN A SUCH A WAY TO MAKE THEM A CLOCKWISE OR ANTI CLOCKWISE ROTATORS OR TWISTERS, MAKING THE INSTRUMENT ATTAIN MICRO FORCEPS FUNCTION. THE INSTRUMENT CAN ALSO CAUTERIZE BLEEDING VESSELS. |

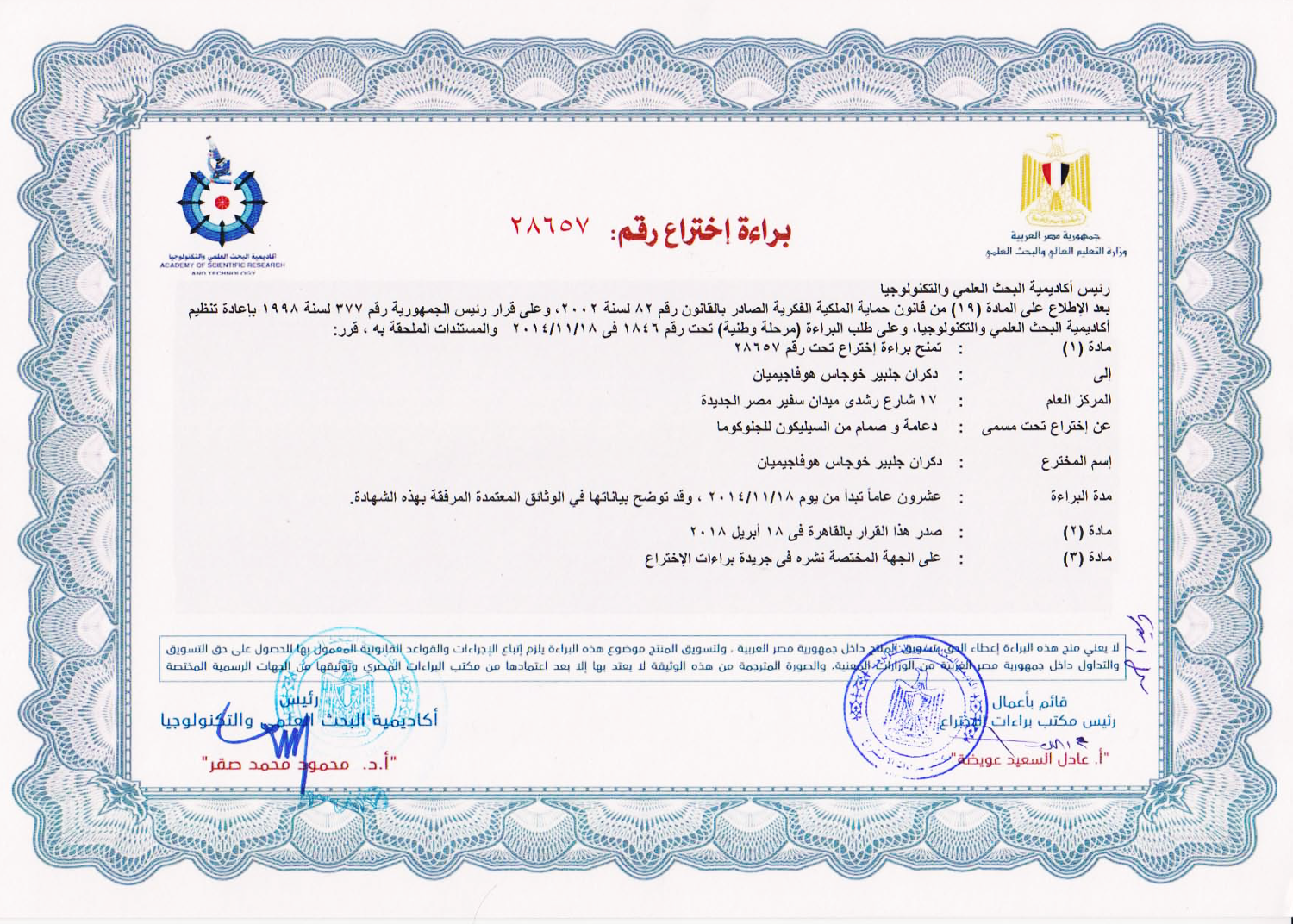

| A NEW SILICONE GLAUCOMA STENT AND GLAUCOMA VALVE | |
|---|---|
|
Application No
|
EG/P/2014/1846
|
|
Title (English)
|
A NEW SILICONE GLAUCOMA STENT AND GLAUCOMA VALVE
|
|
Filling Date
|
18-11-2014 |
|
Patent Date |
18-04-2018 |
|
Patent No
|
28657 |
|
Abstract (English)
|
Glaucoma causes optic atrophy and blindness. The treatment is reduction of eye pressure with medication or surgery or using a valve.
A glaucoma stent and a valve is presented both having 3 silicon tubes adherent to each other .with attached wing shape silicone sheets facilitating the aqueous outflow and prevent fibrosis and surgical failure. In the stent the tubes are patent from both ends and supplied with plugs, while in the valve the tubes are blocked from the rear end and possess 3 slit valves. The stent is used for absolute glaucoma while the valve in most glaucoma variants.
|

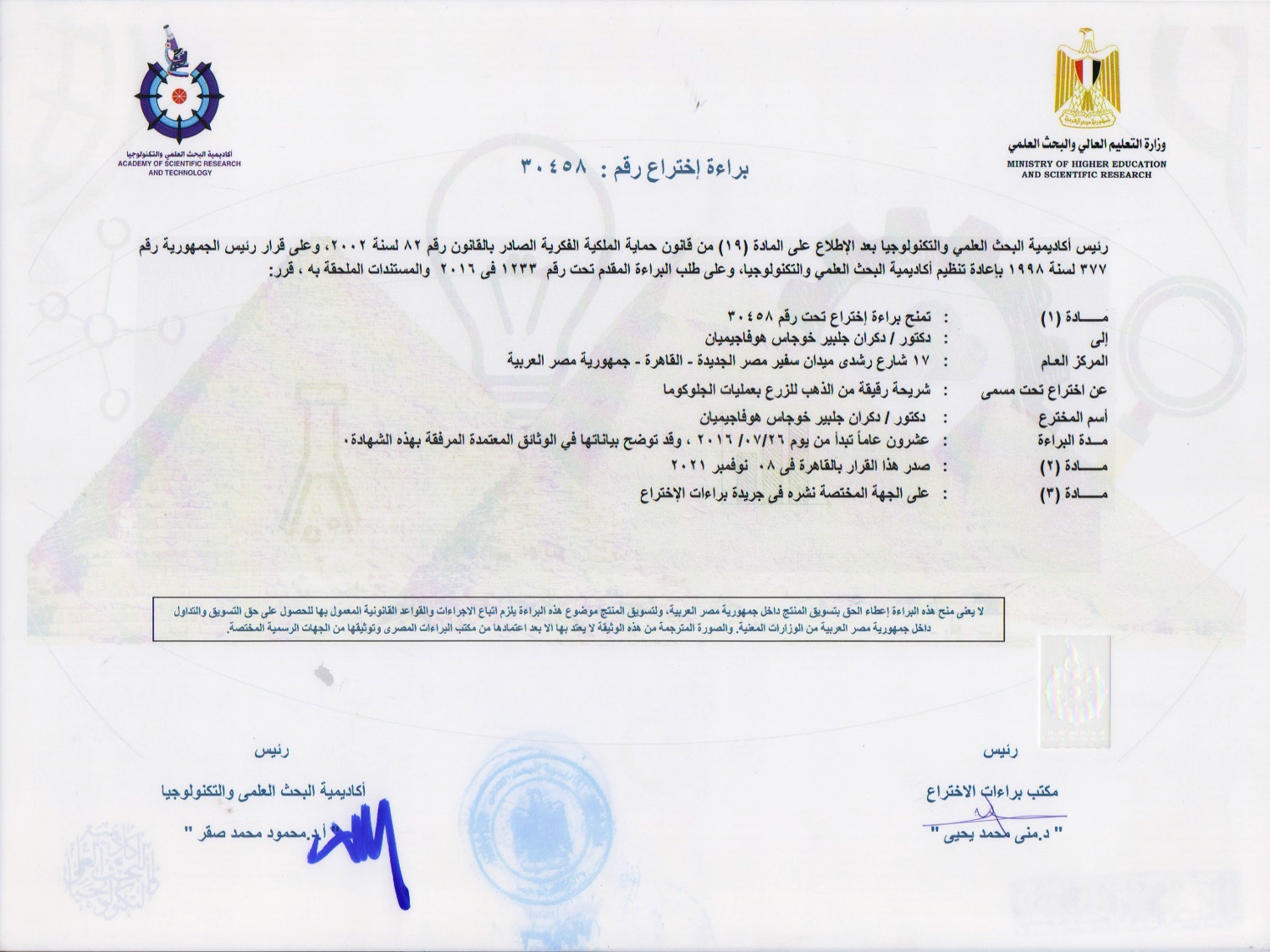

| Ultrathin gold implant for glaucoma surgery | |
|---|---|
|
Application No
|
EG/P/2016/1233
|
|
Title (English)
|
Ultrathin gold implant for glaucoma surgery
|
|
Filling Date
|
26-07-2016
|
|
Patent Date
|
08-11-2021 |
|
Patent No
|
30458 |
|
Abstract (English)
|
There is a wide variety of glaucoma surgeries utilizing complicated implant designs to reduce intraocular pressure (IOP) in advanced and refractory glaucoma. Unfortunately, most of them are associated with complications after surgery. The invention discloses a butterfly- shaped 24 Karat Gold 50 microns implant positioned over the sclera of the eye that will act as a spacer to be implanted in classic glaucoma surgery to improve aqueous drainage and guard against wound fibrosis that ultimately leads to surgery failure. The implant has 3 variations to match the surgeon & rsquo;s accustomed fashioned scleral flap design.
|
| A new sliding roller scleral depressor, marker and localizer | |
|---|---|
|
Application No
|
EG/P/2021/775 |
|
Title (English)
|
A new sliding roller scleral depressor, marker and localizer |
|
Filling Date
|
24-05-2021 |
|
Patent Date
|
|
|
Patent No
|
|
|
Abstract (English)
|
A new sliding roller scleral depressor made of stainless steel or titanium designed for meticulous examination of the peripheral retina and localization of retinal breaks and pathology. It is composed of a handle and terminal end or ends.
The terminal ends are either spherical or cylindrical and have different sizes. Each of the terminal ends have a central marking facility to guide the surgeon for the appropriate surgical procedure. The instrument moves and rolls easily and smoothly on the eye wall and is completely harmless to the tissues and facilitates the examination of every single part of the retinal periphery.
|
| A multifunctional retinal membrane manipulator having folding and unfolding properties mainly designed for 23-, 25- and 27 G vitrectomy Surgeries | |
|---|---|
|
Application No
|
EG/P/2021/776 |
|
Title (English)
|
A multifunctional retinal membrane manipulator having folding and unfolding properties mainly designed for 23-, 25- and 27 G vitrectomy Surgeries |
|
Filling Date
|
24-05-2021 |
|
Patent Date
|
|
|
Patent No
|
|
|
Abstract (English)
|
A multifunctional surgical instrument made of stainless steel or titanium used to manipulate epiretinal and subretinal membranes during 23-, 25- and 27-Gauge vitrectomy surgeries.
The blades of the instrument can be folded to safely enter through the cannulas used in the aforementioned vitrectomy systems, and then they are unfolded so that the blades become almost double the size inside the eye. The blades have many shapes, sharp, blunt and can be separated from each other to any desired degree from 0 to 180°, providing unlimited surgical options. The instrument can also be connected to the bipolar diathermy unit.
The terminal ends are either spherical or cylindrical and have different sizes. Each of the terminal ends have a central marking facility to guide the surgeon for the appropriate surgical procedure. The instrument moves and rolls easily and smoothly on the eye wall and is completely harmless to the tissues and facilitates the examination of every single part of the retinal periphery.
|

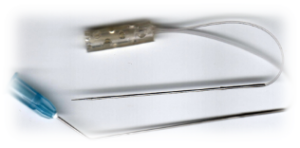

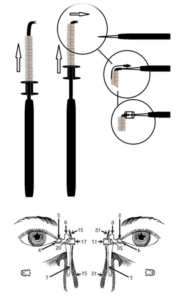

| RETROGRADE LACRIMAL STENT IMPLANTATION SET | |
|---|---|
|
Application No
|
EG/P/2021/774 |
|
Title (English)
|
RETROGRADE LACRIMAL STENT IMPLANTATION SET |
|
Filling Date
|
24-05-2021 |
|
Patent Date
|
|
|
Patent No
|
|
|
Abstract (English)
|
The Lacrimal Stent is made of medical grade silicone intended for permanent implantation. It is designed for retrograde implantation through the nasal cavity either as a primary choice for patients requiring endoscopic Nasolacrimal surgery or for patients with previously failed surgeries. The stent has a special guide and an applicator. The stent will be implanted in the lacrimal fossa passing through a hole in the lacrimal bone preventing its’ obstruction. On the nasal side the stent possesses 4 notches to guard against its blockage and possesses holes that will aid the drainage of the tears. |

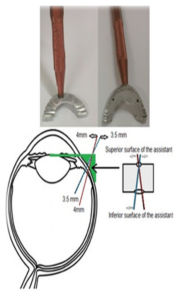

| Intravitreal injection assist tool | |
|---|---|
|
The Intravitreal injection assist facilitate Intravitreal injection and provide safe, accurate, consistent and rapid injections into the intravitreal compartment of the eye. It stabilizes the eye preventing or almost abolishing the risk of damaging the crystalline lens and/or the retina.
It provides the choice to inject in any eye quadrant, guiding the needle at a fixed angle to penetrate the eye either at a distance of 3.5mm or 4mm from the limbus. It allows a stepped injection, guided controlled paracentesis and the ability to simultaneously inject two types of medication. It minimizes to a great extent sub-conjunctival hemorrhage and drug reflux.
|
|
